Endo Wise Plus

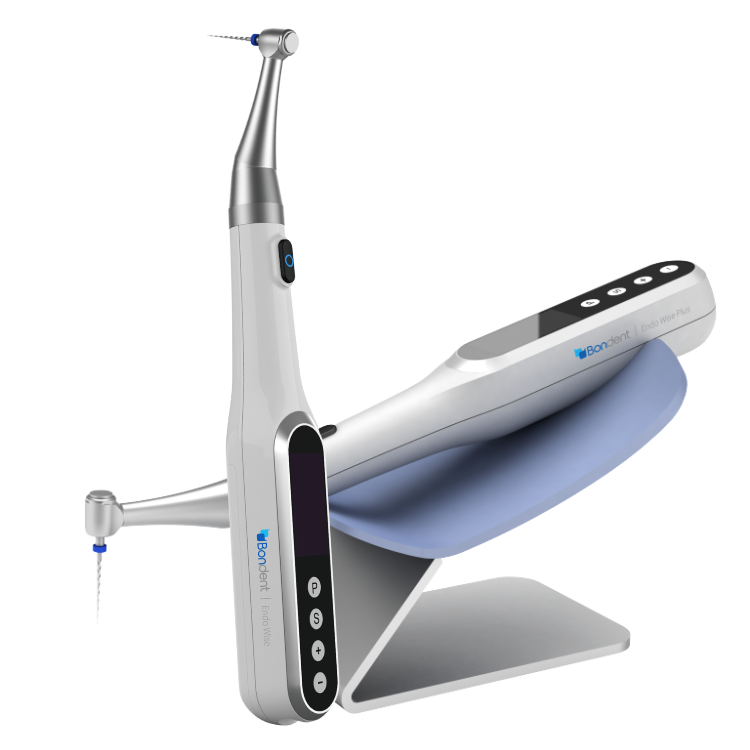

Endo Wise Plus Endodontic Motor for Modern Root Canal Treatment

Endo Wise Plus is a cordless endodontic motor from Bondent that combines mechanical canal preparation with an integrated electronic apex locator. Therefore, clinicians can prepare root canals and monitor working length using one compact device.

The system provides four working modes. These include motor operation with apex-locator control, independent motor and apex-locator operation, apex-locator-only operation and motor-only operation. As a result, clinicians can select the workflow that best suits each endodontic procedure.

In addition, the unit provides continuous rotation and reciprocating operation. It also includes an OLED display, automatic calibration and programmable memory. Consequently, the system can support different rotary and reciprocating file techniques.

Why Choose Endo Wise Plus?

Endodontic treatment requires controlled instrumentation and accurate working-length determination. Endo Wise Plus combines these functions in one cordless platform.

Furthermore, the system can automatically respond to the file position when the apex-controlled motor mode is active. The motor can start, slow down, reverse or stop according to the selected apical reference and operating settings.

Therefore, the clinician can maintain better control during mechanical canal preparation while monitoring the apical position.

Key Benefits

• Integrated apex locator: Combines electronic working-length measurement with mechanical root canal preparation in one device.
• Four operating modes: Choose between integrated automatic control, combined motor and apex locator, apex locator only or motor only.
• Cordless operation: The compact wireless design reduces cable clutter around the dental chair.
• Rotary and reciprocating capability: Supports different endodontic instrumentation techniques and compatible NiTi file systems.
• Automatic motor control: In the appropriate mode, the system can adjust motor operation according to the file's position.
• 10 programmable memories: Save individual speed, torque and motion settings for commonly used endodontic systems.
• OLED display: Clearly presents operating parameters and endodontic measurement information.
• Bluetooth connectivity: Supports wireless communication with compatible devices and accessories.

Four Working Modes

One of the main advantages of Endo Wise Plus is its flexible operating system. Bondent identifies four working modes for the device.

1. Apex Locator Controlled Motor

In this mode, the apex locator controls motor behaviour according to the file position.

The system can provide automatic functions such as Auto Start, Auto Slow Down, Auto Reverse and Auto Stop, depending on the selected settings and apical reference.

Therefore, the motor can respond automatically as the file approaches the selected working-length reference.

2. Motor and Apex Locator

This mode allows the motor and apex locator to operate together without the automatic motor-control function.

As a result, the clinician can monitor the electronic working length while independently controlling the motor.

3. Apex Locator Only

Use this mode when you need electronic working-length measurement without operating the endodontic motor.

Therefore, the Endo Wise Plus can also function as an apex locator when the clinical workflow requires separate mechanical instrumentation.

4. Motor Only

Finally, the motor-only mode allows the device to operate as a conventional cordless endodontic motor.

This flexibility makes the unit suitable for clinicians who use different instrumentation approaches across different cases.

Rotary and Reciprocating Endodontic Motor

Endo Wise Plus supports both continuous rotation and reciprocating movement. Therefore, clinicians can use the motor with compatible rotary and reciprocating NiTi instrumentation systems.

The system provides clockwise and counter-clockwise rotation. In addition, it supports reciprocating movement with adjustable operating parameters.

This flexibility allows clinicians to adapt the motor to different endodontic techniques. However, always follow the speed, torque and movement requirements specified by the manufacturer of the selected file system.

Automatic Apex-Controlled Operation

When the apex-controlled motor mode is active, the system can respond to the file's position inside the root canal.

First, the motor can start when the file enters the canal. Then, it can reduce speed as the file approaches the apical reference. Finally, the system can reverse or stop according to the selected settings.

As a result, the automatic functions can provide an additional layer of control during mechanical instrumentation.

However, these functions should complement, rather than replace, clinical judgement. Always establish working length according to an appropriate endodontic protocol.

10 Programmable Endodontic Settings

The Endo Wise Plus provides memory for 10 personalised programmes, P01–P10.

Therefore, clinicians can save commonly used operating parameters for different file systems and treatment techniques.

For example, a clinic can configure individual programmes for different rotary or reciprocating systems. This approach can reduce repeated manual adjustments during daily procedures.

Always enter the speed, torque and movement settings according to the current instructions from the relevant file manufacturer.

OLED Display

The unit includes an integrated OLED display that presents the operating information clearly.

The display allows the clinician to monitor parameters while working. In addition, the apex-locator information can appear alongside the motor status when the combined mode is active.

Therefore, the integrated screen helps keep important endodontic information within the clinician's immediate field of view.

Cordless Design

The cordless configuration gives the clinician greater freedom around the dental chair.

Instead of routing a motor cable across the working area, the operator can hold and position the handpiece directly. Consequently, the system can help reduce cable clutter during root canal treatment.

The built-in battery uses a 1200 mAh / 3.7 VDC rechargeable lithium battery. Bondent-related product documentation lists a charging time of approximately 90 minutes.

Bluetooth Connectivity

The Endo Wise Plus includes wireless communication modules that support compatible accessories and equipment.

Current product documentation identifies Bluetooth connectivity for communication with compatible systems, including the external iRoot Apex apex locator and wireless foot pedal.

Therefore, clinics can build a more streamlined wireless endodontic setup around compatible Bondent equipment.

16:1 Autoclavable Contra-Angle

The system uses a 16:1 contra-angle designed for endodontic instrumentation.

The contra-angle supports multiple positioning angles, which can help clinicians adapt the handpiece to different access positions.

Furthermore, the contra-angle is autoclavable at high temperature according to the product documentation. Follow the current manufacturer Instructions for Use for the exact cleaning, lubrication and sterilisation procedure.

Endo Wise Plus Clinical Workflow

The Endo Wise Plus can support several stages of root canal treatment.

Step 1 – Prepare the Access

First, establish appropriate access to the root canal system using the clinician's preferred technique.

Step 2 – Select the File System

Next, select compatible rotary or reciprocating NiTi files according to the treatment plan.

Step 3 – Choose the Operating Mode

Then, select the appropriate Endo Wise Plus mode.

Use the integrated apex-controlled mode when you want the motor to respond automatically to the file position. Alternatively, select motor-only or apex-locator-only operation when the procedure requires independent functions.

Step 4 – Set Speed and Torque

Enter the speed, torque and movement parameters specified by the file manufacturer.

If you have already stored the settings in one of the 10 memory programmes, select the appropriate programme.

Step 5 – Establish Working Length

Use the integrated apex locator to monitor the file position and establish the working length according to the clinical protocol.

Step 6 – Instrument the Canal

Proceed with mechanical canal preparation while monitoring the file position and motor parameters.

Step 7 – Complete the Preparation

Finally, complete canal shaping and cleaning according to the selected endodontic technique.

This workflow allows clinicians to combine mechanical instrumentation and electronic working-length monitoring in one compact device.

Endodontic Applications

The Endo Wise Plus can support:

• Root canal preparation
• Mechanical canal shaping
• Rotary instrumentation
• Reciprocating instrumentation
• Working-length measurement
• Electronic apex location
• Combined motor and apex-locator workflows
• Endodontic retreatment workflows
• General endodontic procedures

Therefore, it can suit general dental practices as well as clinics that perform a high volume of endodontic treatment.

Technical Specifications

Specification	Details
Product	Endo Wise Plus
Manufacturer	Bondent
Product family	Endodontic / Endo
Device type	Cordless endodontic motor with integrated apex locator
Operating modes	4
Motor operation	Continuous rotation and reciprocating
Speed range	150–800 rpm
Torque range	0.6–4.0 N·cm
Display	Integrated OLED
Memory programmes	10, P01–P10
Battery	1200 mAh / 3.7 VDC
Charging time	Approximately 90 minutes
Power supply	100–240 VAC
Contra-angle	16:1
Contra-angle sterilisation	Autoclavable
Bluetooth frequency	2402–2480 MHz
Dimensions	Approximately 210 × 25 × 27 mm, including contra-angle
Calibration	Automatic
Apex locator	Integrated
Wireless connectivity	Yes
Application	Root canal preparation and working-length measurement

Technical specifications can vary between product revisions and markets. Therefore, confirm the final configuration and current manufacturer documentation before ordering.

What Is Included?

The available product documentation lists the following components for the Endo Wise Plus package:

• Endo Wise Plus main unit
• 16:1 contra-angle
• Contra-angle sleeves
• Lubrication nozzle
• Measurement cables
• Lip hooks
• File clip
• Power adapter
• USB cable
• Metal stand
• User manual

Package contents can vary according to market and current configuration. Therefore, confirm the exact TransAfrica package before purchase.

Who Should Buy Endo Wise Plus?

The Endo Wise Plus is suitable for dental professionals who want a cordless endodontic motor with integrated electronic apex-location capability.

It can be particularly useful for:

• General dental clinics
• Endodontic practices
• Private dental practices
• Multi-chair dental clinics
• Clinics performing rotary instrumentation
• Clinics using reciprocating NiTi systems
• Practices looking to reduce endodontic equipment clutter

Furthermore, the four operating modes make the device flexible enough for different clinical workflows.

What to Consider Before Buying

Before purchasing Endo Wise Plus, consider the file systems your clinic uses.

First, confirm the required speed and torque ranges. Next, check whether your preferred files use continuous rotation or reciprocating movement. Finally, confirm the exact settings recommended by the file manufacturer.

Also, consider whether you want a standalone apex locator or an integrated system. Endo Wise Plus provides both motor and apex-locator functions in one device.

If your clinic already uses an iRoot Apex, confirm the required wireless configuration and compatibility before ordering.

Frequently Asked Questions

What is Endo Wise Plus?

Endo Wise Plus is a cordless endodontic motor with an integrated apex locator from Bondent. It combines mechanical root canal preparation with electronic working-length measurement.

Does Endo Wise Plus have an integrated apex locator?

Yes. The apex locator forms part of the Endo Wise Plus system. Bondent identifies the device as a cordless endodontic motor with an integrated apex locator.

How many working modes does Endo Wise Plus have?

It has four working modes: apex-controlled motor, motor and apex locator, apex locator only and motor only.

Does Endo Wise Plus support reciprocating files?

Yes. The system supports both rotary and reciprocating operation. Therefore, clinicians can use compatible instrumentation systems according to the manufacturer's recommended settings.

What is the speed range?

The documented speed range is approximately 150–800 rpm.

What is the torque range?

The documented torque range is 0.6–4.0 N·cm.

How many programmes can I save?

The system provides 10 programmable memory positions, labelled P01 through P10.

Does the Endo Wise Plus have Bluetooth?

Yes. The system includes Bluetooth wireless communication. Product documentation identifies wireless connectivity with compatible equipment and accessories.

How long does the battery take to charge?

The 1200 mAh / 3.7 V battery takes approximately 90 minutes to charge according to current product documentation.

Can I use Endo Wise Plus as an apex locator only?

Yes. One of the four operating modes allows the apex locator to operate independently from the motor.

Can I use Endo Wise Plus as a motor only?

Yes. The fourth operating mode allows the device to operate as an independent endodontic motor.

Complete Your Endodontic Workflow

For a complete endodontic setup, consider pairing Endo Wise Plus with:

• iRoot Apex
• Endodontic rotary files
• Reciprocating NiTi files
• Endodontic hand files
• Irrigation needles
• Endodontic irrigation systems
• Gutta-percha points
• Endodontic sealers
• Obturation systems
• Endodontic microscopes
• CBCT imaging
