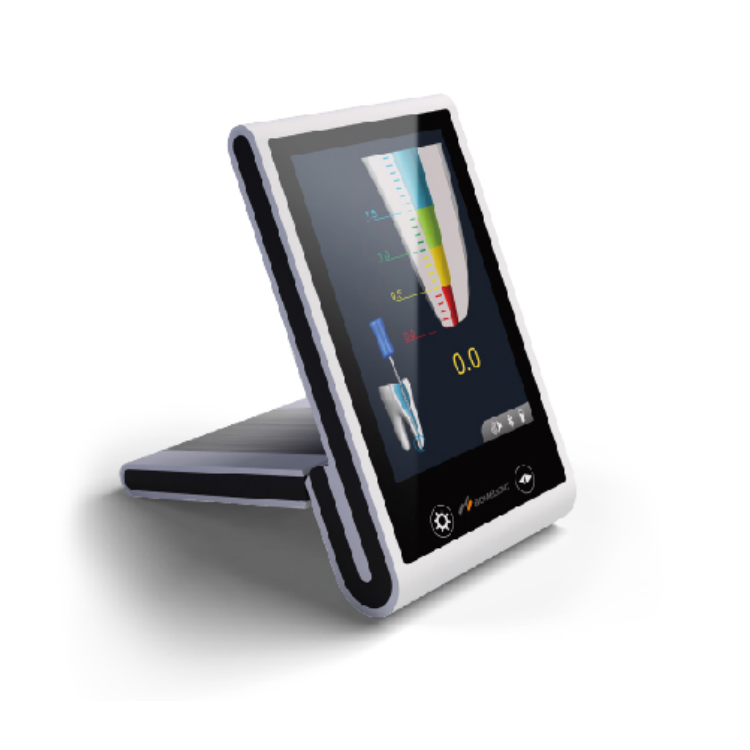

iRoot Apex Locator – BOMEDENT Electronic Apex Locator

iRoot Apex Locator for Precise Endodontic Working Length

The iRoot Apex Locator from BOMEDENT helps clinicians determine root canal working length during endodontic treatment. The device uses multi-frequency impedance measurement technology to track the file position inside the root canal and provide visual and audible guidance as the file approaches the apical region.

In addition, the iRoot Apex features a high-quality colour LCD display and a touch panel. Therefore, clinicians can monitor the measurement clearly while maintaining an efficient endodontic workflow.

The device also incorporates Bluetooth connectivity. As a result, compatible endodontic equipment can communicate with the apex locator without requiring unnecessary cables.

Why Choose the iRoot Apex Locator?

Accurate working-length determination plays an important role in root canal treatment. Therefore, an electronic apex locator can help clinicians establish the working length before canal preparation and obturation.

The iRoot Apex Locator combines several features designed for practical endodontic use. It uses multi-frequency measurement technology, automatic calibration and a high-precision gyroscope.

Furthermore, the gyroscope allows the display to adjust according to the device's orientation. Consequently, clinicians can view the measurement from different working positions.

Key Benefits

• Multi-frequency measurement: The system uses network impedance measurement across multiple frequencies to help determine the file's position within the root canal.
• High-resolution colour display: The wide-viewing-angle LCD screen provides a clear graphical representation of the file position and apical region.
• Automatic display orientation: A high-precision gyroscope automatically adjusts the screen orientation as the device changes position.
• Bluetooth connectivity: Wireless communication allows the iRoot Apex to connect with compatible endodontic equipment.
• Easy Start function: The simplified start-up process helps clinicians begin measurements efficiently.
• Visual and audible guidance: The system provides graphical and audible indications as the file approaches the selected apical reference.
• Compact and portable design: The lightweight unit fits easily into an endodontic treatment setup.

iRoot Apex Locator Technology

The iRoot Apex uses multi-frequency impedance measurement technology to determine the relative position of the endodontic file within the root canal.

During measurement, the device analyses electrical impedance changes. Then, it translates those measurements into visual information on the display.

The system also provides automatic calibration. Therefore, the clinician can start measurements without performing a complicated manual calibration process.

Because root canal conditions can vary, clinicians should always combine electronic measurements with appropriate clinical assessment and radiographic information where indicated.

High-Resolution LCD Display

The iRoot Apex uses a 3.5-inch TFT LCD display with a wide viewing angle.

The screen presents the measurement graphically. In addition, the display provides an enlarged view of the apical region to help clinicians monitor the file as it approaches the working area.

The high-precision gyroscope also detects the orientation of the unit. As a result, the display can automatically adjust when the clinician changes the viewing angle.

This feature makes the unit particularly practical when clinicians work from different positions around the dental chair.

Smart Visual and Audible Guidance

The iRoot Apex Locator provides visual information as the file advances through the canal.

At the same time, audible alerts provide additional feedback. Therefore, the clinician does not need to rely solely on the screen while concentrating on the root canal procedure.

The system can also provide an alert when the file approaches the apical reference. Manufacturer-related product information specifies an alert at approximately 2.2 mm from the apex. Always follow the current manufacturer Instructions for Use for the exact operating parameters.

Bluetooth Connectivity

The iRoot Apex incorporates Bluetooth technology for communication with compatible endodontic equipment.

For example, Bondent identifies Bluetooth integration as one of the key features of the iRoot Apex. The device can also connect with the iRoot Pro Endodontic Motor through Bluetooth.

The iRoot Apex can also work with the Marc III Endo Motor through a cable connection according to product information. Therefore, clinicians can build a more integrated endodontic workflow around compatible BOMEDENT equipment.

Compact Design for Endodontic Procedures

The iRoot Apex measures approximately 110 × 65 × 20 mm and weighs approximately 185 g.

Therefore, the unit takes up limited space on the treatment tray or endodontic workstation.

Its rechargeable battery also supports portable use. The device uses a 3.7 V / 1000 mAh battery, while the supplied adapter supports approximately 100–220 V, 50/60 Hz input according to available product specifications.

iRoot Apex Locator Clinical Workflow

The iRoot Apex Locator can form part of a structured root canal treatment workflow.

Step 1 – Prepare the Root Canal

First, establish appropriate access and prepare the canal according to the selected endodontic technique.

Step 2 – Connect the Accessories

Next, connect the lip clip, file holder and probe cable according to the manufacturer's instructions.

Step 3 – Establish the Measurement

Then, introduce the endodontic file into the prepared canal and begin electronic length measurement.

Step 4 – Monitor the Display

Watch the graphical display as the file advances. Meanwhile, listen to the audible feedback provided by the unit.

Step 5 – Determine the Working Length

Use the electronic measurement together with appropriate clinical assessment to establish the working length.

Step 6 – Confirm the Measurement

Finally, confirm the working length using the clinician's established endodontic protocol. Where indicated, use radiographic confirmation and other clinical methods.

This approach allows the apex locator to complement, rather than replace, sound endodontic judgement.

Compatible Endodontic Workflow

The iRoot Apex can work as a standalone electronic apex locator. However, it can also form part of a broader BOMEDENT endodontic system.

For example, the iRoot Pro combines an endodontic motor with apex-locating functionality. Meanwhile, the Marc III provides a cordless endodontic motor that can communicate with the iRoot Apex through the appropriate connection.

Therefore, clinics can select a standalone apex locator or build a more integrated endodontic setup.

Technical Specifications

Specification	Details
Product	iRoot Apex Locator
Brand	BOMEDENT
Product family	Endo
Device type	Electronic apex locator
Application	Root canal working-length measurement
Measurement technology	Multi-frequency impedance measurement
Display	3.5-inch TFT LCD
Display type	Wide viewing angle colour display
Touch panel	Yes
Gyroscope	High-precision integrated gyroscope
Display orientation	Automatic
Connectivity	Bluetooth
Battery	3.7 V / 1000 mAh
Power consumption	≤0.6 W
Dimensions	Approximately 110 × 65 × 20 mm
Weight	Approximately 185 g
Adapter input	Approximately 100–220 V, 50/60 Hz
Calibration	Automatic
Audio guidance	Yes
Visual guidance	Yes
Compatible equipment	iRoot Pro; Marc III with appropriate connection
Clinical use	Endodontic working-length determination

Specifications can vary by market or product revision. Therefore, confirm the exact configuration and current manufacturer documentation before placing an order.

Clinical Applications

The iRoot Apex Locator is intended for endodontic procedures where clinicians need electronic assistance with root canal working-length determination.

Typical applications include:

• Root canal treatment
• Working-length determination
• Endodontic canal preparation
• Conventional endodontic procedures
• Re-treatment procedures where electronic length measurement is appropriate
• Endodontic workflows using compatible rotary or reciprocating systems

Therefore, the device can support both general dental practices and specialist endodontic workflows.

Benefits for Endodontic Practices

An apex locator can improve workflow efficiency by providing real-time electronic information during canal measurement.

With the iRoot Apex, clinicians can monitor the file position visually and audibly. In addition, the automatic screen orientation makes the device easier to view from different treatment positions.

Furthermore, Bluetooth connectivity can reduce cable clutter when the device works with compatible BOMEDENT equipment.

As a result, the iRoot Apex provides a practical combination of measurement technology, visual guidance and wireless connectivity.

What to Consider Before Buying

Before purchasing the iRoot Apex Locator, first determine whether you need a standalone apex locator or an integrated endodontic motor and apex locator.

If you already use a compatible BOMEDENT endodontic motor, check the required connection method. For example, the iRoot Pro supports Bluetooth integration, while the Marc III can connect through the appropriate cable.

Also, confirm the included accessories, power adapter and warranty for the specific package supplied in your market.

Finally, remember that an electronic apex locator should complement appropriate clinical assessment. Follow the manufacturer's Instructions for Use and your established endodontic protocol.

Frequently Asked Questions

What is the iRoot Apex Locator?

The iRoot Apex is an electronic apex locator from BOMEDENT designed to assist clinicians with root canal working-length measurement.

How does the iRoot Apex work?

The device uses multi-frequency impedance measurement technology to analyse the electrical characteristics of the root canal and estimate the file's position relative to the apical region.

Does the iRoot Apex use Bluetooth?

Yes. The device incorporates Bluetooth connectivity and can communicate with compatible BOMEDENT endodontic equipment.

Can iRoot Apex connect to iRoot Pro?

Yes. Product information identifies Bluetooth connectivity between the iRoot Apex and the iRoot Pro endodontic motor.

Can it work with Marc III?

Yes. Available product information indicates that the iRoot Apex can connect with the Marc III endodontic motor through a cable connection.

Does the display rotate automatically?

Yes. The unit uses an integrated high-precision gyroscope to adjust the display orientation according to the device position.

What size is the iRoot Apex display?

The device uses a 3.5-inch TFT LCD display with a wide viewing angle.

Is the iRoot Apex portable?

Yes. The compact body and rechargeable battery make the unit suitable for portable use within the dental operatory.

Does the iRoot Apex replace radiographs?

No. The apex locator provides electronic assistance with working-length determination. Clinicians should use appropriate clinical judgement and radiographic assessment where indicated.

Complete Your Endodontic Workflow

For a complete endodontic setup, consider pairing the iRoot Apex Locator with:

• iRoot Pro Endodontic Motor
• Marc III Endo Motor
• Endodontic rotary files
• Reciprocating files
• Endodontic handpieces
• Irrigation systems
• Apex-compatible file holders
• Endodontic obturation equipment
• Endodontic microscopes
• Dental imaging systems

For example, link iRoot Pro Endodontic Motor to its dedicated TransAfrica product page if available.

You can also link Endodontic Equipment to your internal endodontics category page. These actual internal links can help customers navigate related products and can also improve Yoast's internal-link assessment.

Why Buy iRoot Apex From TransAfrica Medical Supplies?

TransAfrica Medical Supplies supplies professional dental equipment and endodontic solutions to dental clinics and healthcare facilities in Kenya.

Our team can help clinics select equipment that matches their treatment workflow. In addition, we can assist with product configuration, installation coordination and product training.

The iRoot Apex can also form part of a broader digital endodontic setup. Therefore, our team can help you select compatible endodontic motors, instruments and supporting equipment.

Order iRoot Apex Locator

Improve your endodontic workflow with the iRoot Apex Locator from BOMEDENT.

With multi-frequency measurement, automatic display orientation, Bluetooth connectivity and a compact design, the iRoot Apex provides a practical solution for electronic working-length determination.

Contact TransAfrica Medical Supplies for pricing, availability and professional product support in Kenya.
